Part Number: GB101A-704

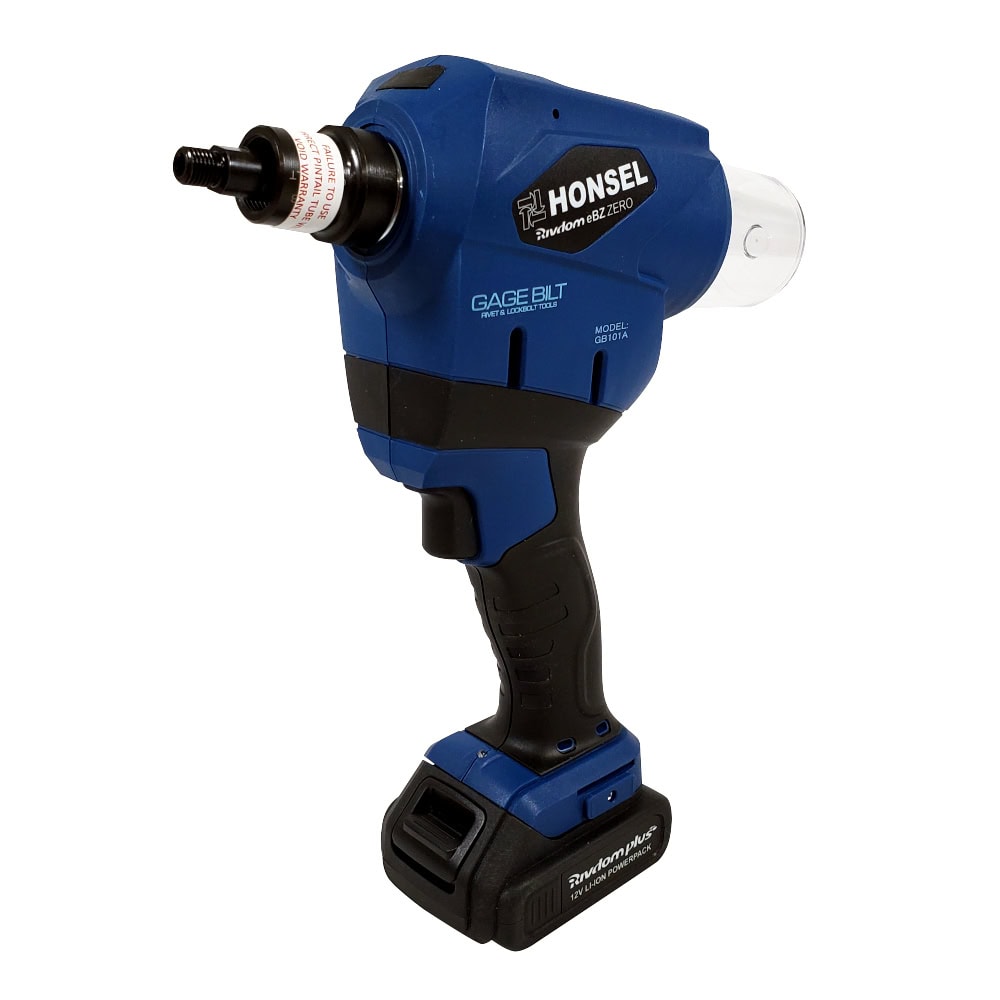

The GB101A is a battery operated 12V installation tool designed specifically for the efficient installation of a variety of small diameter aerospace fasteners. It weighs just 2.9 lbs. (1.3 kg) and can be operated in any position. It has a .788” (20 mm) fastener setting stroke and a rated pull load of 1,528.7 lbs. (6.80 kN).
| Weight | 2.9 lbs |
|---|---|
| Brand | Gage Bilt |
| MPN | GB101A-704/2 |
| Power Source | Cordless |
| Pull Force (lbf) | 1529 |
| Stroke (in.) | 0.788 |
| Fastener Type | Size | Nose Assy | Nose Type | Adapter | Accessories | Note |
|---|---|---|---|---|---|---|
| CherryMAX | 4 | 456MAX-701-17 | Straight | |||
| 4 | 456MAX-704-35 | Straight | ||||
| 4 | 456MAX-749-35 | Straight | Front end ejecting nose assembly. | |||
| 4 | 456MAX-704B-40OS | Offset | ||||
| CherryMAX 'AB' | 4 | 456MAX-701-17 | Straight | |||
| 4 | 456MAX-704-35 | Straight | ||||
| 4 | 456MAX-749-35 | Straight | Front end ejecting nose assembly. | |||
| 4 | 456MAX-704B-40OS | Offset | ||||
| Ground Stud | 13/64 | GS8-704-16 | Straight | Use 40468 Pintail Tube. | ||
| 13/64 | GS8-704-40OS | Offset | ||||
| 17/64 | GS10-704A-40OS | Offset | ||||
| MBC Lock Creator | 4 | 456MAX-701-17 | Straight | |||
| 4 | 456MAX-704-35 | Straight | ||||
| 4 | 456MAX-749-35 | Straight | ||||
| 4 | 456MAX-704B-40OS | Offset | ||||
| NAS1398/NAS1399 'A' | 3 | 3A-101704-16 | Straight | |||
| 3 | 3A-704A-40OS | Offset | ||||
| 4 | 4A-704A-16 | Straight | ||||
| 4 | 4A-704A-40OS | Offset | ||||
| NAS1900 S | 4 | SMLS04-704A-16 | Straight | |||
| 4 | SMLS04-704A-40OS | Offset | ||||
| NAS1900 S&U | 4 | UBR04-704A-16 | Straight | |||
| 4 | 456MAX-704B-40OS | Offset | ||||
| Nut Plate Rivet | 3 | 3C-101704-16 | Straight | |||
| 3 | 3C-704A-40OS | Offset | ||||
| 4 | 4C-704A-16 | Straight | ||||
| 4 | 4C-704A-40OS | Offset |
