Additional information
| Weight | 4.25 lbs |
|---|---|
| MPN | G704B |
| Brand | Cherry Aerospace |
| Power Source | Pneudraulic |
| Form Factor | Pistol Grip |
| Pull Force (lbf) | 3100 |
| Stroke (in.) | 0.51 |

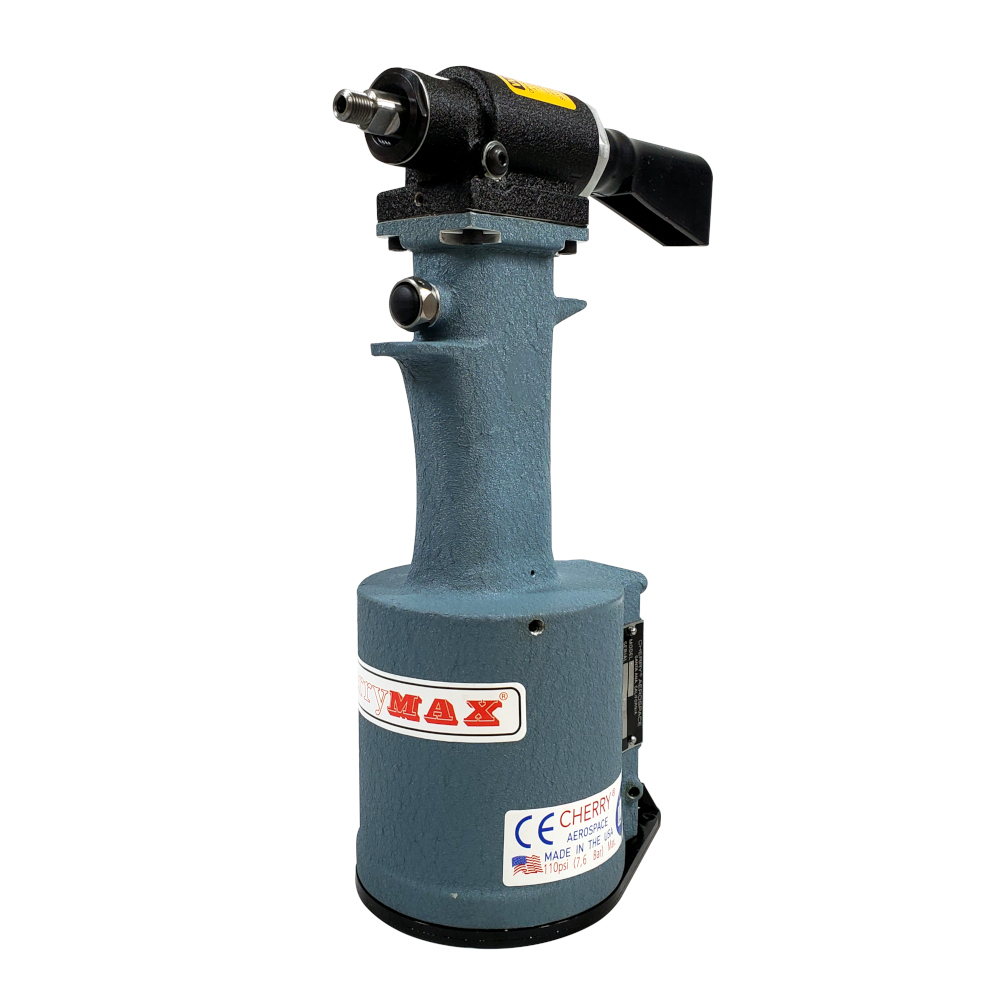

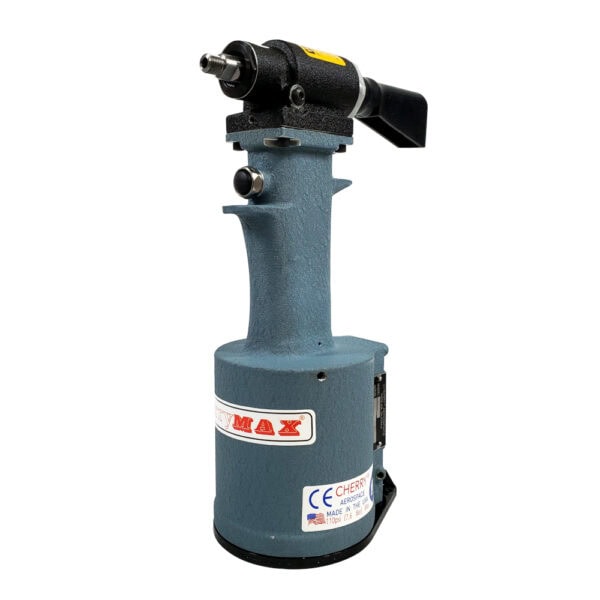

Cherry G704B CherryMAX Rivet Installation Tool
Part Number: G704B
| Fastener Type | Size | Nose Assy | Nose Type | Adapter | Accessories | Note |
|---|---|---|---|---|---|---|
| CherryMAX | 4 | H701B-456 | Straight | |||
| 4 | H747-456 | Straight | ||||
| 4 | H753A-456 | Right Angle | ||||
| 4 | H781A-456 | Offset | ||||
| 4 | H782 | Offset | ||||
| 5 | H701B-456 | Straight | ||||
| 5 | H747-456 | Straight | ||||
| 5 | H753A-456 | Right Angle | ||||
| 5 | H781A-456 | Offset | ||||
| 5 | H782 | Offset | ||||
| 6 | H701B-456 | Straight | ||||
| 6 | H747-456 | Straight | ||||
| 6 | H753A-456 | Right Angle | ||||
| 6 | H781A-456 | Offset | ||||
| 6 | H782 | Offset | ||||
| CherryMAX 'AB' | 4 | H701B-456 | Straight | Max Grip: -4 | ||
| 4 | H747-456 | Straight | Max Grip: -4; Alloy Steel & Monel only, no -6 Aluminum | |||
| 4 | H753A-456 | Right Angle | Max Grip: -4; Alloy Steel & Monel only, no -6 Aluminum | |||
| 4 | H781A-456 | Offset | Max Grip: -4; Alloy Steel & Monel only, no -6 Aluminum | |||
| 4 | H782 | Offset | Max Grip: -4; Alloy Steel & Monel only, no -6 Aluminum | |||
| 5 | H701B-456 | Straight | Max Grip: -4 | |||
| 5 | H747-456 | Straight | Max Grip: -4; Alloy Steel & Monel only, no -6 Aluminum | |||
| 5 | H753A-456 | Right Angle | Max Grip: -4; Alloy Steel & Monel only, no -6 Aluminum | |||
| 5 | H781A-456 | Offset | Max Grip: -4; Alloy Steel & Monel only, no -6 Aluminum | |||
| 5 | H782 | Offset | Max Grip: -4; Alloy Steel & Monel only, no -6 Aluminum | |||
| 6 | H701B-456 | Straight | Max Grip: -4 | |||
| 6 | H747-456 | Straight | Max Grip: -4; Alloy Steel & Monel only, no -6 Aluminum | |||
| 6 | H753A-456 | Right Angle | Max Grip: -4; Alloy Steel & Monel only, no -6 Aluminum | |||
| 6 | H781A-456 | Offset | Max Grip: -4; Alloy Steel & Monel only, no -6 Aluminum | |||
| 6 | H782 | Offset | Max Grip: -4; Alloy Steel & Monel only, no -6 Aluminum | |||
| MBC | 4 | H746-4MBC | Straight | May be double stroked for grips longer than -4. | ||
| 5 | H746-5MBC | Straight | May be double stroked for grips longer than -4. | |||
| 6 | H746-6MBC | Straight | May be double stroked for grips longer than -4. | |||
| MBC Lock Creator | 4 | H701B-456 | Straight | May be double stroked for grips longer than -4. | ||
| 4 | H747-456 | Straight | May be double stroked for grips longer than -4. | |||
| 4 | H753A-456 | Right Angle | Max Grip: -4 | |||
| 4 | H781A-456 | Offset | May be double stroked for grips longer than -4. | |||
| 5 | H701B-456 | Straight | May be double stroked for grips longer than -4. | |||
| 5 | H747-456 | Straight | May be double stroked for grips longer than -4. | |||
| 5 | H753A-456 | Right Angle | Max Grip: -4 | |||
| 5 | H781A-456 | Offset | May be double stroked for grips longer than -4. | |||
| 6 | H701B-456 | Straight | May be double stroked for grips longer than -4. | |||
| 6 | H747-456 | Straight | May be double stroked for grips longer than -4. | |||
| 6 | H753A-456 | Right Angle | Max Grip: -4 | |||
| 6 | H781A-456 | Offset | May be double stroked for grips longer than -4. | |||
| 6 | H782 | Offset | May be double stroked for grips longer than -4. | |||
| 6 | H782 | Offset | May be double stroked for grips longer than -4. | |||
| 6 | H782 | Offset | May be double stroked for grips longer than -4. | |||
| NAS1398/NAS1399 'A' | 3 | H747-3A | Straight | May be double stroked for grips longer than -4. | ||
| 3 | H955-3 | Straight | Alloy Steel and Monel only; no -6 dia Aluminum. May be double stroked for grips longer than -4. | |||
| 3 | H886-3 | Right Angle | Alloy Steel and Monel only; no -6 dia Aluminum. Max Grip: -4. | |||
| 4 | H955-4 | Straight | Alloy Steel and Monel only; no -6 dia Aluminum. May be double stroked for grips longer than -4. | |||
| 4 | H886-4 | Right Angle | Alloy Steel and Monel only; no -6 dia Aluminum. Max Grip: -4. | |||
| 5 | H955-5 | Straight | Alloy Steel and Monel only; no -6 dia Aluminum. May be double stroked for grips longer than -4. | |||
| 5 | H886-5 | Right Angle | Alloy Steel and Monel only; no -6 dia Aluminum. Max Grip: -4. | |||
| 6 | H955-6 | Straight | Alloy Steel and Monel only; no -6 dia Aluminum. May be double stroked for grips longer than -4. | |||
| 6 | H886-6 | Right Angle | Alloy Steel and Monel only; no -6 dia Aluminum. Max Grip: -4. | |||
| Nut Plate Rivet | 3 | H747-3NPR | Straight | May be double stroked for grips longer than -4. | ||
| 3 | H902-3NPR | Straight | May be double stroked for grips longer than -4. | |||
| 3 | H9015-3C | Straight | 704A9 | May be double stroked for grips longer than -4. | ||
| 4 | H902-4NPR | Straight | May be double stroked for grips longer than -4. | |||
| 4 | H9015-4C | Straight | 704A9 | May be double stroked for grips longer than -4. | ||
| 4 | H9040-4C | Straight | 704A9 | May be double stroked for grips longer than -4. | ||
| 5 | H9015-5C | Straight | 704A9 | May be double stroked for grips longer than -4. | ||
| 5 | H9040-5C | Straight | 704A9 | May be double stroked for grips longer than -4. | ||
| 6 | H9015-6C | Straight | 704A9 | May be double stroked for grips longer than -4. | ||
| 6 | H9040-6C | Straight | 704A9 | May be double stroked for grips longer than -4. | ||
| 8 | H9040-8C | Straight | 704A9 | May be double stroked for grips longer than -4. | ||
| SST | 4 | H701B-456 | Straight | |||
| 4 | H747-456 | Straight | ||||
| 4 | H753A-456 | Right Angle | ||||
| 4 | H781A-456 | Offset | ||||
| 4 | H782 | Offset | ||||
| 5 | H701B-456 | Straight | ||||
| 5 | H747-456 | Straight | ||||
| 5 | H753A-456 | Right Angle | ||||
| 5 | H781A-456 | Offset | ||||
| 5 | H782 | Offset | ||||
| 6 | H701B-456 | Straight | ||||
| 6 | H747-456 | Straight | ||||
| 6 | H753A-456 | Right Angle | ||||
| 6 | H781A-456 | Offset | ||||
| 6 | H782 | Offset |
